Aluminium Composite Panel (ACP)
Lightweight, rigid sheets combining aluminum and plastic for diverse applications.
Aluminium Composite Panel (ACP)

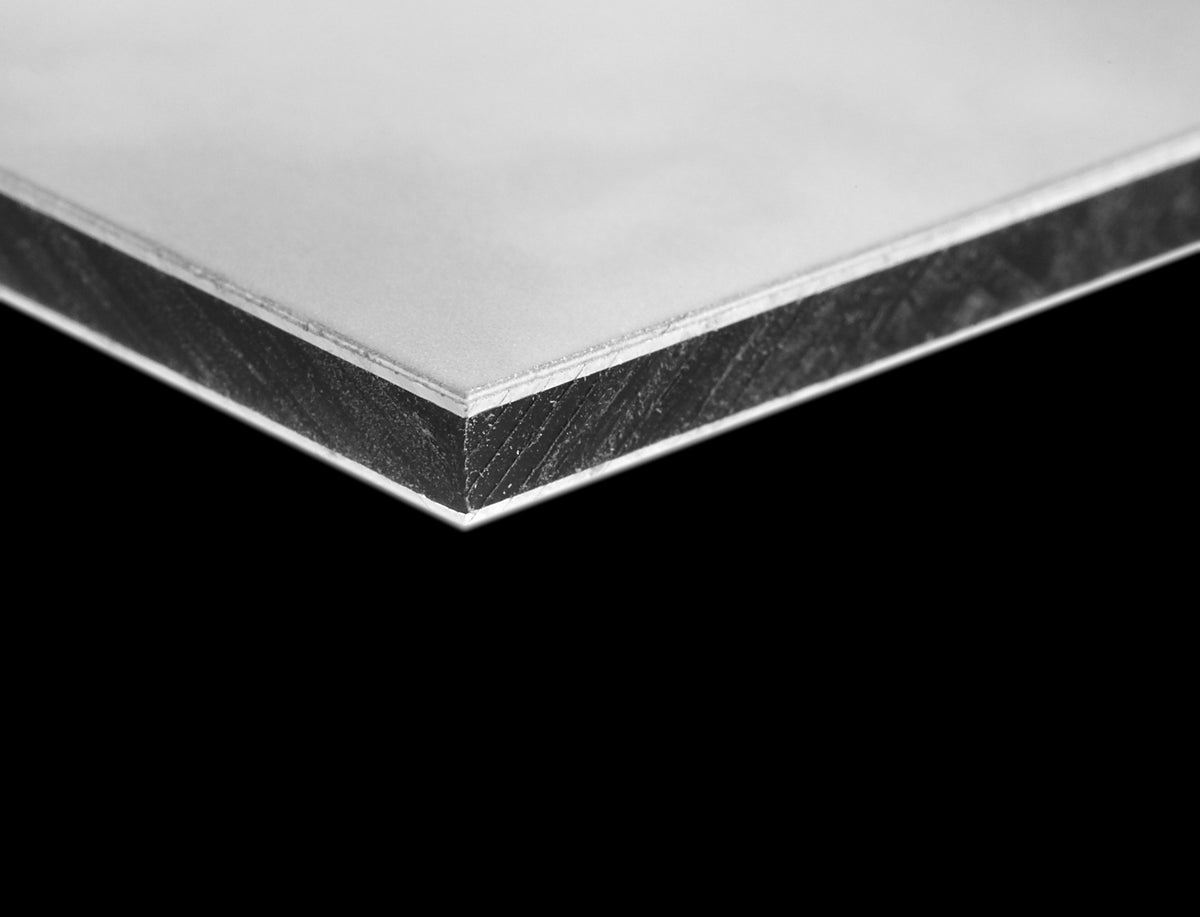

Aluminium Composite Panel (ACP) is a lightweight, rigid panel consisting of two aluminium outer layers bonded to a non-aluminium core. It is widely used in signage, cladding, and architectural applications due to its strength, flatness, and excellent weather resistance. ACM offers a smooth, professional finish and is easy to fabricate, making it ideal for both indoor and outdoor projects.
Key Features
- Lightweight & Rigid – Strong structure with minimal weight
- Excellent Weather Resistance – Performs well in outdoor conditions
- Smooth, Flat Surface – Ideal for printing and signage
- Easy to Fabricate – Can be cut, routed, folded, and shaped
- Corrosion Resistant – Aluminium surfaces resist rust and deterioration
- Available in Various Finishes – Including matte, gloss, and brushed options
Suitable Uses
| Signage & Display |
|
|---|---|
| Building & Construction |
|
| Industrial Applications |
|
Technical Information
| Material Composition | Two aluminium skins bonded to a polyethylene (PE) core |
| Aluminium Skin Thickness | 0.21 mm / 0.3 mm |
| Total Panel Thickness | 3 mm / 4 mm |
| Core Material | LDPE |
| Density | ~3.5 – 5.6 kg/m² |
| Surface Finish | PE coated (interior), PVDF coated (exterior) |
| UV Resistance | Good (PE) / Excellent (PVDF) |
| Weather Resistance | Good (PE) / Excellent (PVDF) |
| Impact Resistance | High |
| Operating Temperature | -50°C to +80°C |
| Fire Rating | Standard ACP: Not fire-rated |
| Water Absorption | Nil |
Available Colours
