UHMWPE

Ultra High Molecular Weight Polyethylene (UHMWPE)

Ultra-high molecular weight polyethylene with exceptional wear and impact resistance.

☀
0.93 g/cm³ Density
◇
<0.01% Water Absorption
♨
-200°C to +80°C Temperature Range
◈
Outstanding Wear Resistance
ABOUT THE MATERIAL

What is UHMWPE?

Ultra-high molecular weight polyethylene (UHMWPE) exhibits exceptional wear and abrasion resistance, along with remarkable impact strength, even in temperatures below -200°C.

UHMWPE showcases excellent chemical resistance, low moisture absorption, a minimal coefficient of friction and superior anti-stick properties. It is widely used in high-wear applications ranging from conveyor wear strips to guide rails and scraper blades.

  • Exceptional wear and abrasion resistance
  • Very low coefficient of friction
  • Exceptional impact resistance
  • Excellent chemical resistance
  • Negligible moisture absorption
WHY UHMWPE?

Key Features

UHMWPE is designed for demanding high-wear, low-friction and impact-resistant applications.

◈

Exceptional Wear Resistance

Ideal for high-friction applications.

↔

Low Friction Surface

Promotes smooth material flow.

◆

High Impact Strength

Performs under heavy loads.

CHEM

Chemical Resistant

Suitable for harsh environments.

H₂O

Moisture Resistant

Does not absorb water.

◌

Noise Reducing

Dampens vibration and sound.

COLOURS & FINISHES

Available Colours

UHMWPE is available in Black and White.

Black
White
APPLICATIONS

Suitable Uses

UHMWPE is commonly used in industrial, mining, bulk handling, food-processing and marine applications.

Industrial & Manufacturing

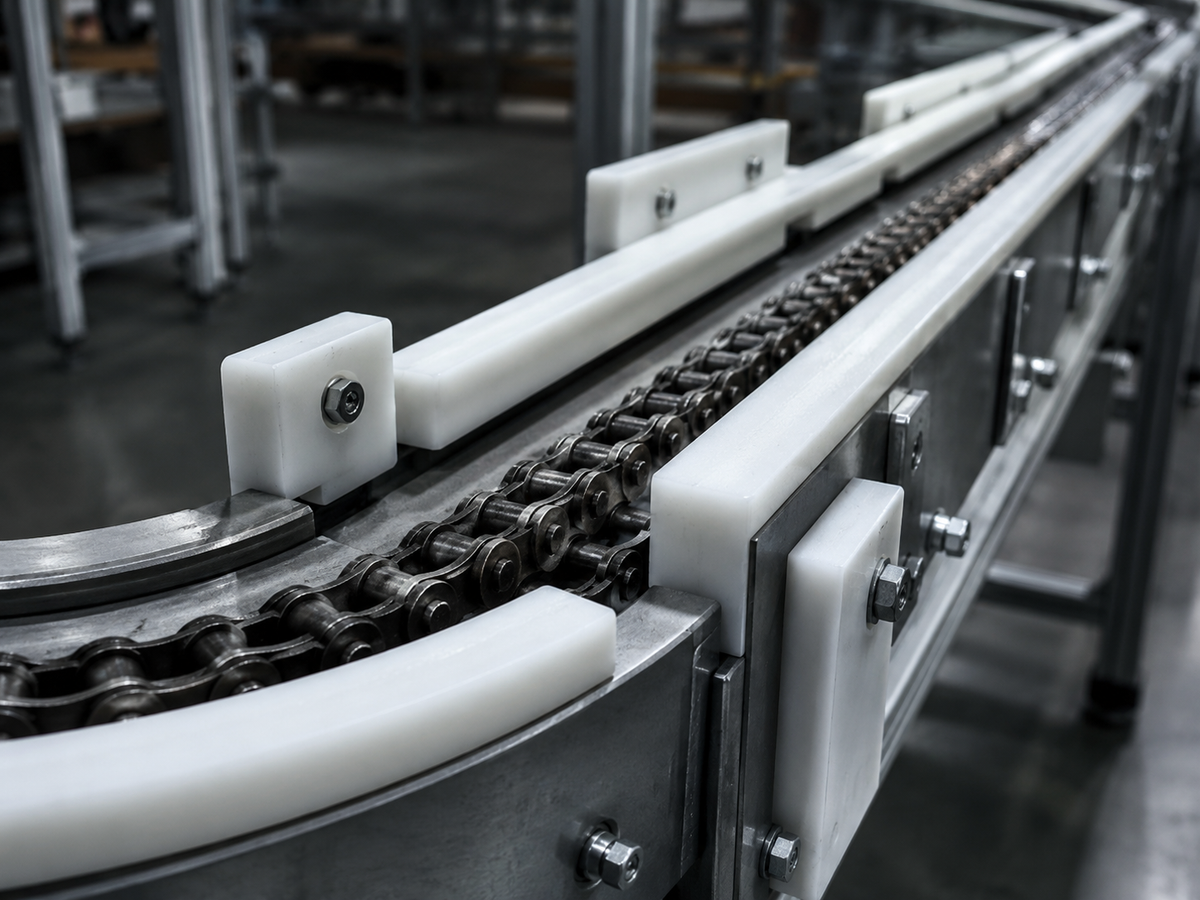

  • Conveyor guides and wear strips
  • Chute linings and hoppers
  • Chain guides and rollers

Mining & Bulk Handling

  • Impact plates
  • Transfer points
  • Sliding surfaces

Food & Marine Applications

  • Food processing components
  • Marine fender pads
  • Dock protection systems
MATERIAL DATA

Technical Information

Typical material properties for UHMWPE.

Density ~0.93 g/cm³
Tensile Strength 20–25 MPa
Impact Resistance Exceptional, virtually unbreakable
Abrasion Resistance Excellent, superior to HDPE
Wear Resistance Outstanding
Coefficient of Friction Very low
Water Absorption < 0.01% (negligible)
Temperature Range -200°C to +80°C
Melting Point ~135°C
Chemical Resistance Excellent resistance to acids, alkalis, and solvents
Values shown are typical and may vary by grade, colour, thickness and manufacturer.
ORDER UHMWPE

Order UHMWPE Full Sheets

Choose UHMWPE full sheets in Black or White for demanding high-wear, low-friction and impact-resistant applications.

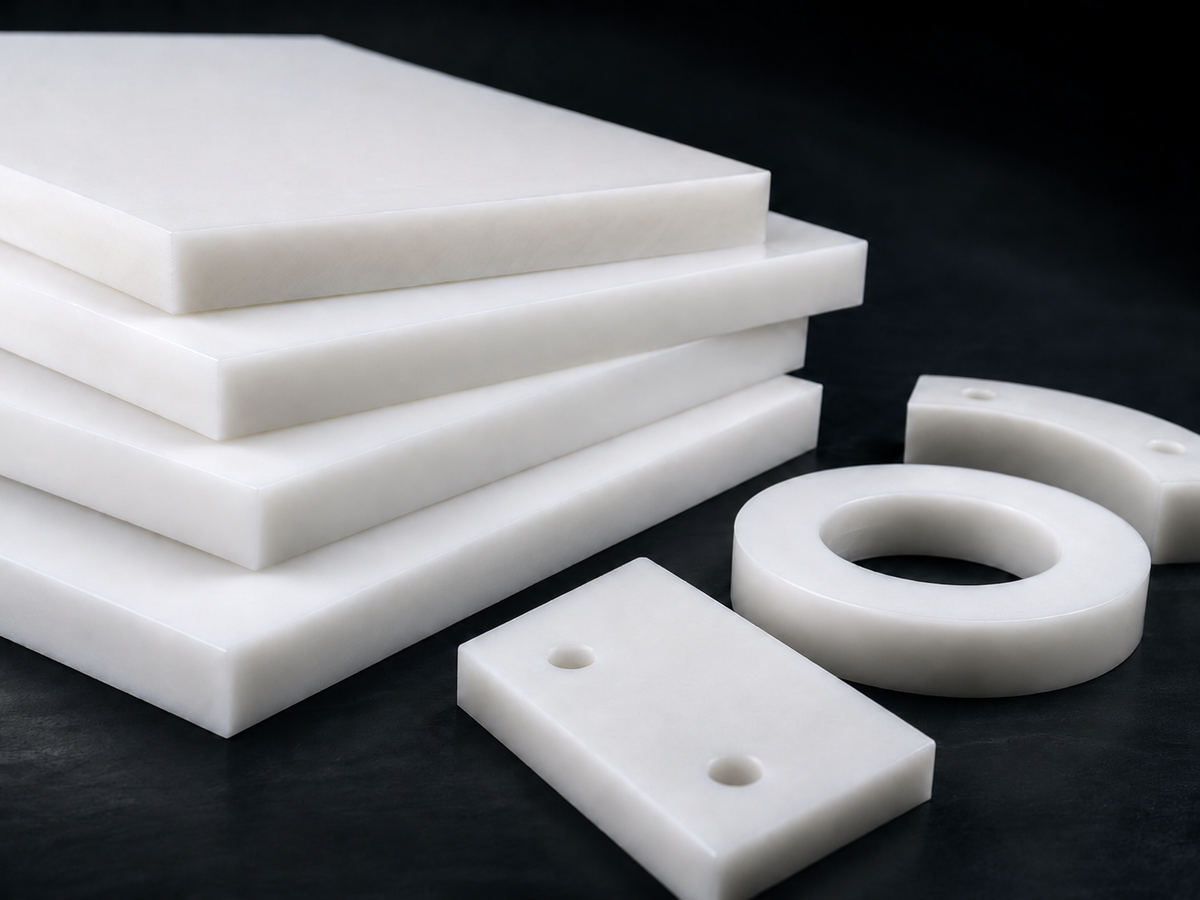

Full UHMWPE Sheets

  • Available in Black and White
  • Outstanding wear and abrasion resistance
  • Ideal for high-friction, impact and sliding applications
Shop Full Sheets →
NEED HELP?

Need help choosing the right UHMWPE?

Tell us about your application, dimensions and wear requirements and our team can help you determine whether UHMWPE is the right material for the job.
